RT Liquid Console
Console is the interface of customer operation and display, also is the data management and record center.
الوصف
Tank Gauging System

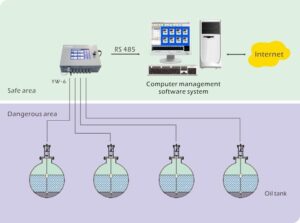

Tank level gauge control system consists of liquid level gauge controller, magneto strictive level gauge, management server and management software and other components, through the tank level, the average temperature and other data of the accurate measurement, effective management of gas station Invoicing And shift and other business. The system can monitor 1-6 tanks at the same time.
Console spec and parameter:
• Touch screen.
• Real time monitor.
• Can check 6 tanks at same time.
• Alarm and remove alarm automatically.
• Create report automatically.
• Attendant management.
• Real time clock.
• Tank data input.
Technology spec:
• Power:AC220V.
• Working temp: -20°C~60°C.
• Installation position: safety area.
• Weight: 5.9KG.
• Screen size: 7 inch.
• Communication port: one RS-485 port for tank probe.
• One RS-232 port for computer.
• Dimension: 247mm*240mm*114.2mm.
